BBC

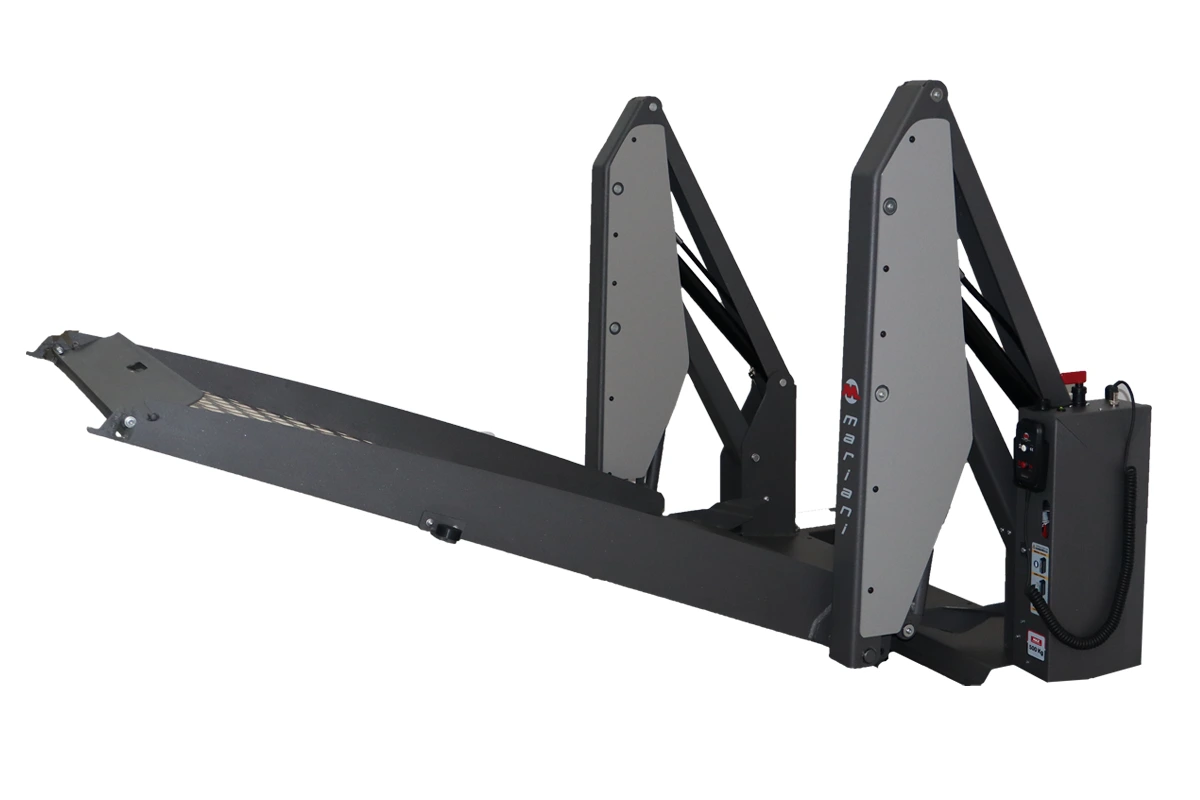

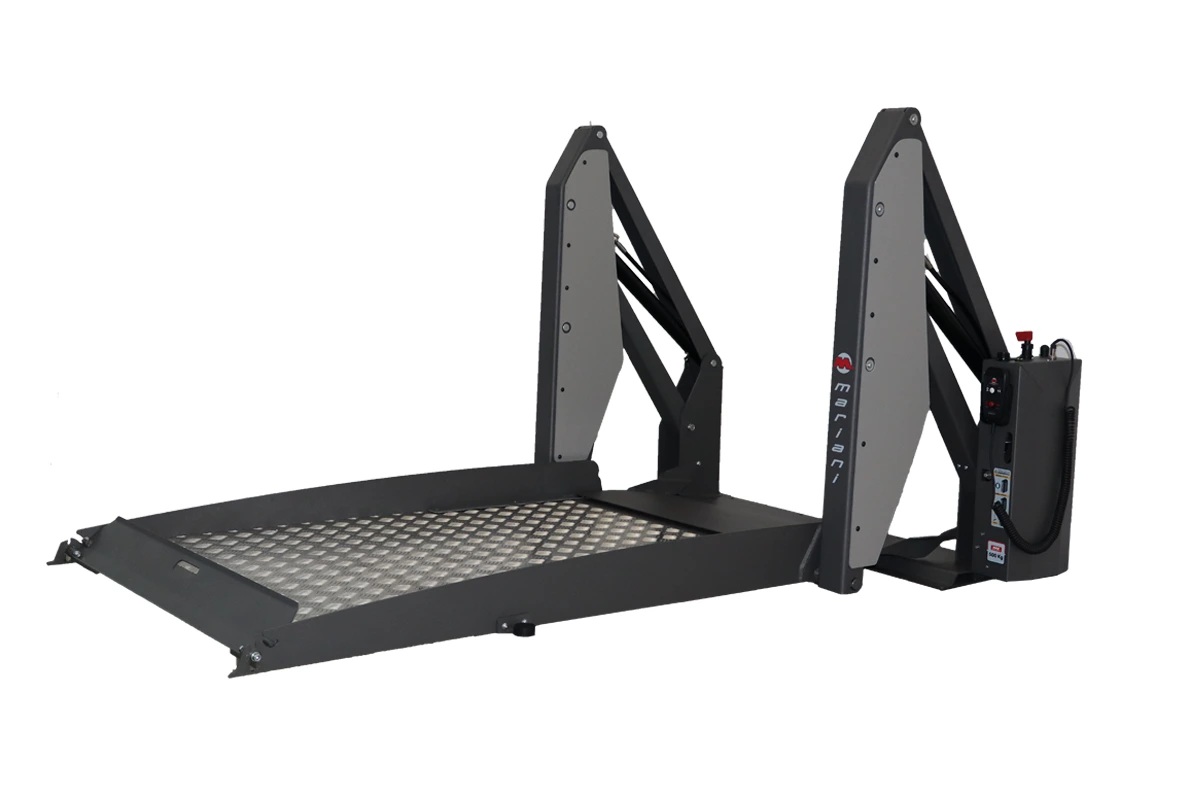

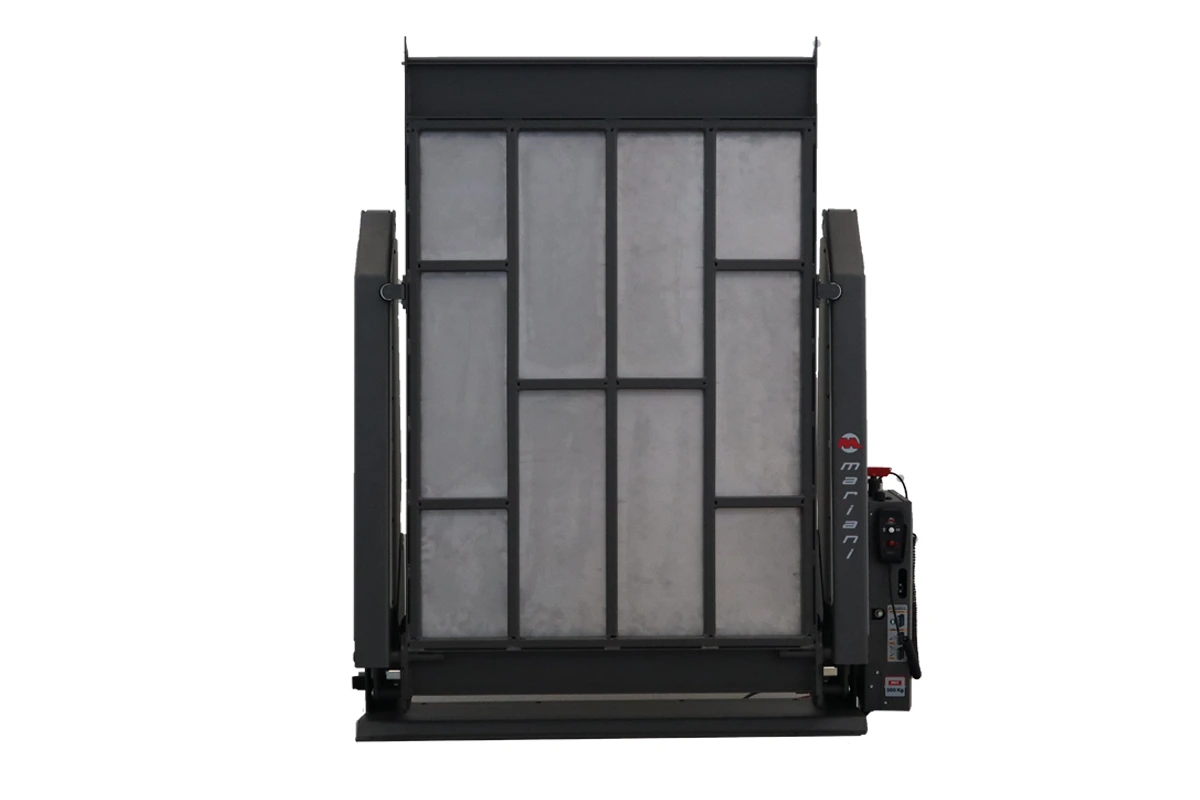

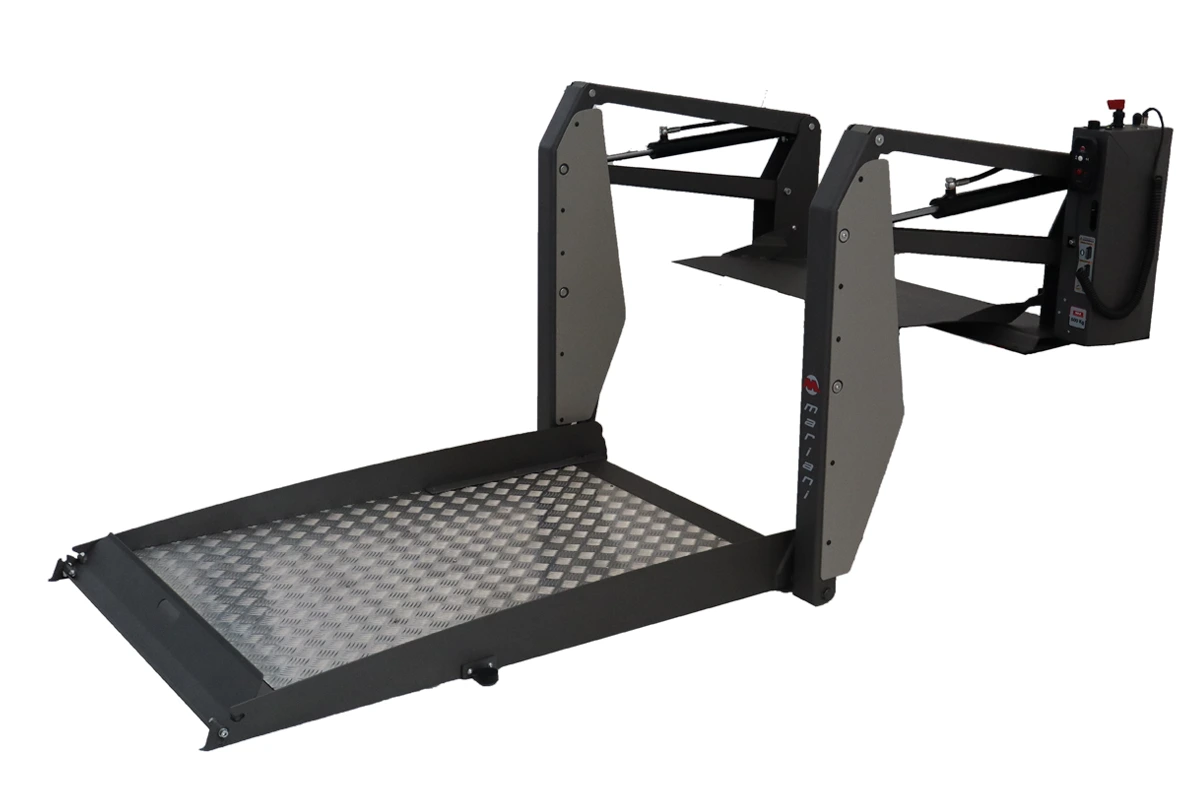

Cargo lifts for vans
BBC cargo lifts for commercial use are available in three models of different sizes to fit different types of vehicles. All are tested to withstand a maximum lifting capacity of 500 kg and can be operated remotely by means of a hand control located inside the vehicle or, on request, by radio control. Setting up the lifting platform on the vehicle is very simple, but for every need you can rely on our consulting and assembly assistance service.
Warranty
24 months
certified
in accordance with CE regulations
| Article | Max capacity | Weight | Power supply | Speed up (full load) | Speed down (full load) | Max pressure | Overall dimensions |
|---|---|---|---|---|---|---|---|
| BBC 120.90 | 500kg | 150kg | 12 - 24 V | 5m/min | 4m/min | 140 bar | 120x90cm |
| BBC 140.90 | 500kg | 155kg | 12 - 24 V | 5m/min | 4m/min | 140 bar | 140x90cm |
| BBC 140.110 | 500kg | 160kg | 12 - 24 V | 5m/min | 4m/min | 140 bar | 140x110cm |
Manual pump for emergency operation
Battery cut-off switch
Automatic vehicle connection flap
Ground connection flap / FERMAROLL
Anti-tilt device
Double microswitch
