BBI
Twin arm lifts with full platform

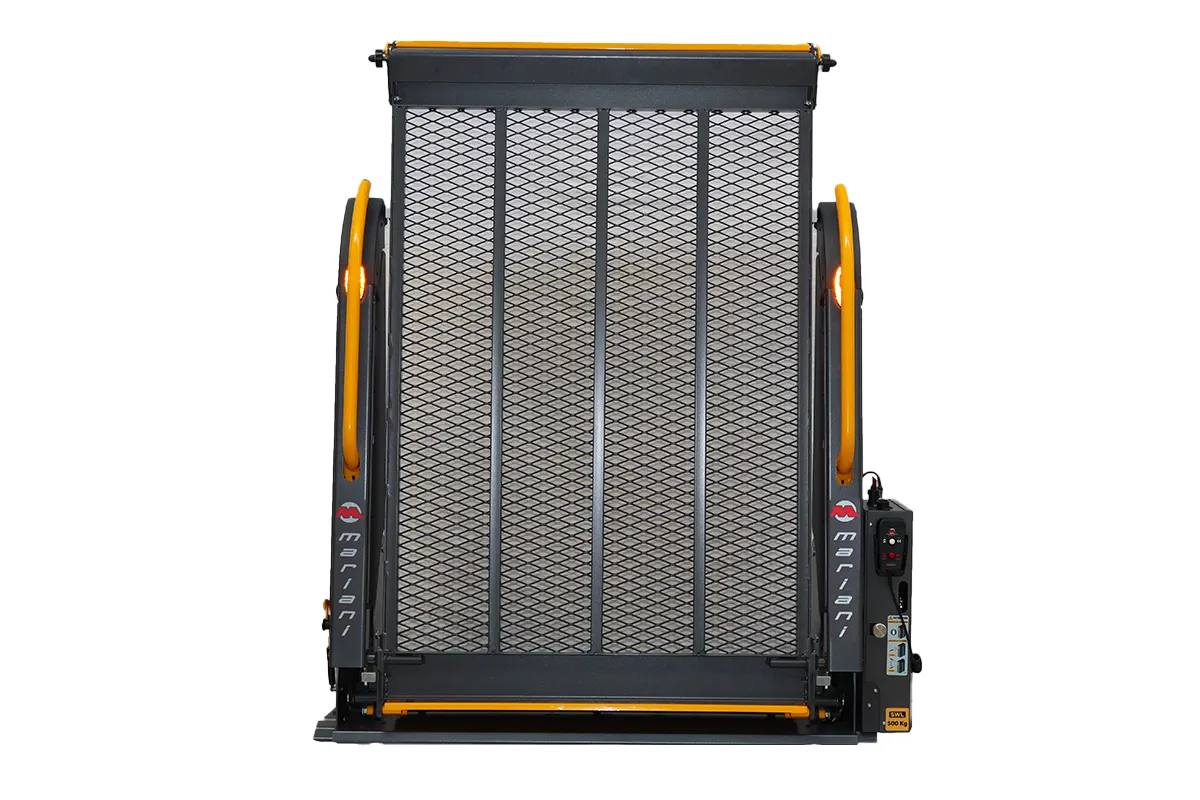

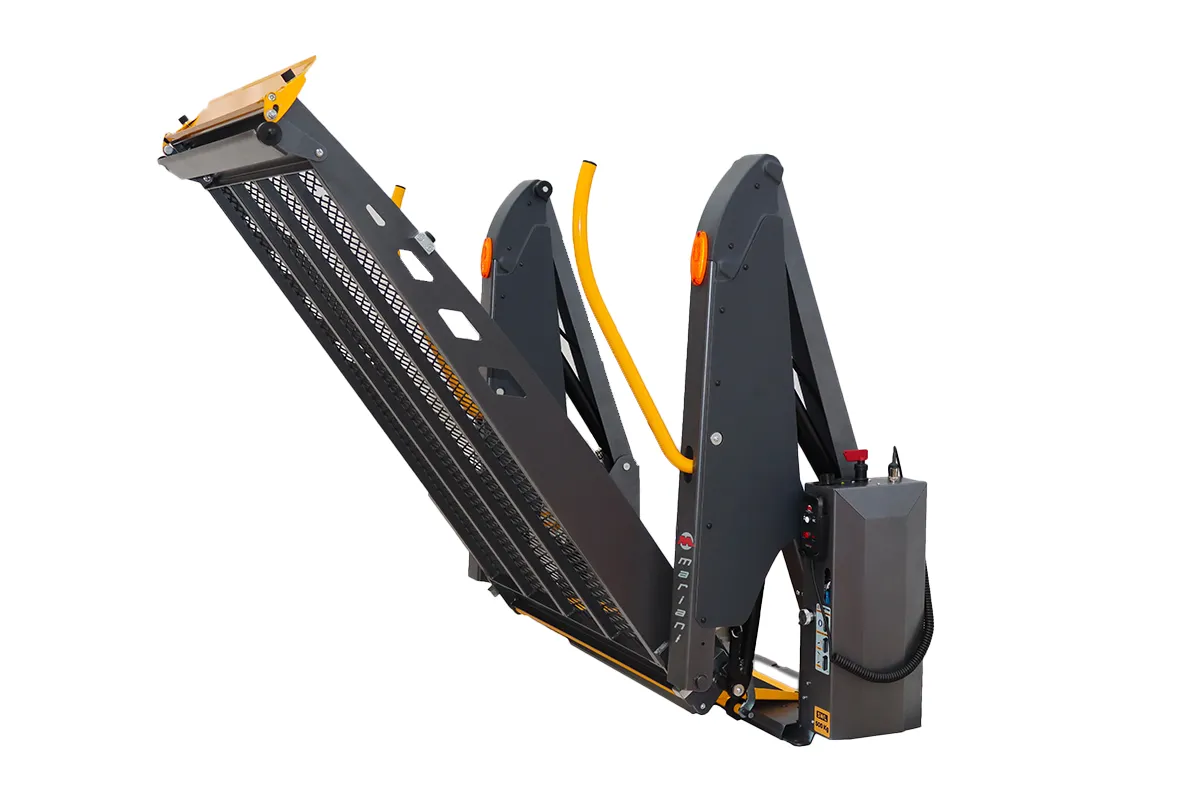

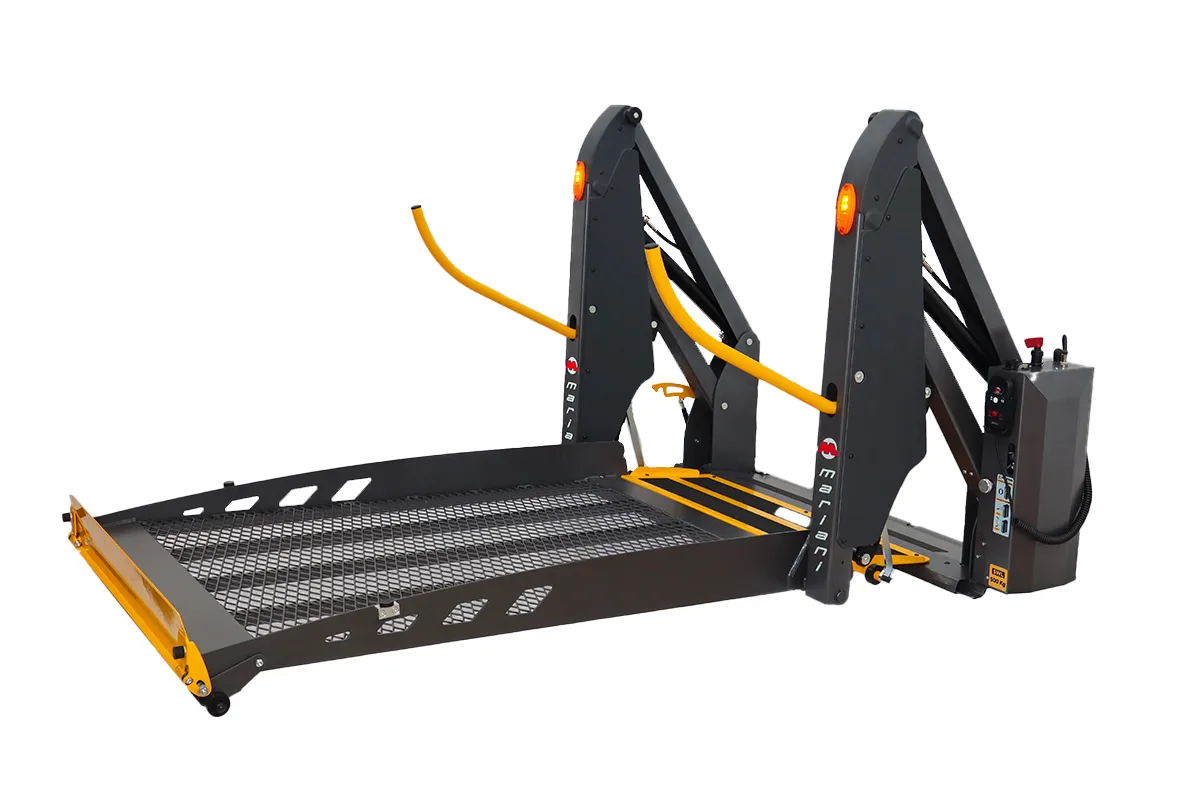

Mariani Lift System’s BBI series includes different types of twin arm wheelchair lifts with a full fixed anti-slip platform. Thanks to an electro-hydraulic control unit that drives the two hydraulic cylinders, the devices operate automatically and can be controlled with a spiral cable hand control. The BBI series wheelchair lifts are available in four different sizes and can be installed on a wide range of special vehicles.
Warranty
24 months
certified
in accordance with CE regulations
| Article | Max Capacity | Weight | Power Supply | Lifting height | Speed up (full load) | Speed down (full load) | Platform | Emergency auxiliary pump |
|---|---|---|---|---|---|---|---|---|
| BBI 115.80 | 360kg | 125kg | 12V | 100cm | 5m/min | 4m/min | 115x80cm | Yes |
| BBI 130.80 | 360kg | 130kg | 12V | 100cm | 5m/min | 4m/min | 130x80cm | Yes |
| BBI 140.80 | 360kg | 140kg | 12V | 100cm | 5m/min | 4m/min | 140x80cm | Yes |
| BBI 140.90 | 360kg | 150kg | 12V – 24V | 100cm | 5m/min | 4m/min | 140x90cm | Yes |
Radio control kit for remote operation of the lift
Up/down switch kit on handle
LED flashing kit on vertical columns
LED flashing kit on vertical columns
Battery cut-off switch
Automatic safety flap for locking wheelchair
Automatic vehicle connection flap
Anti-tilt device
Double microswitch
On a wide range of vehicles, no changes to the vehicle structure.
