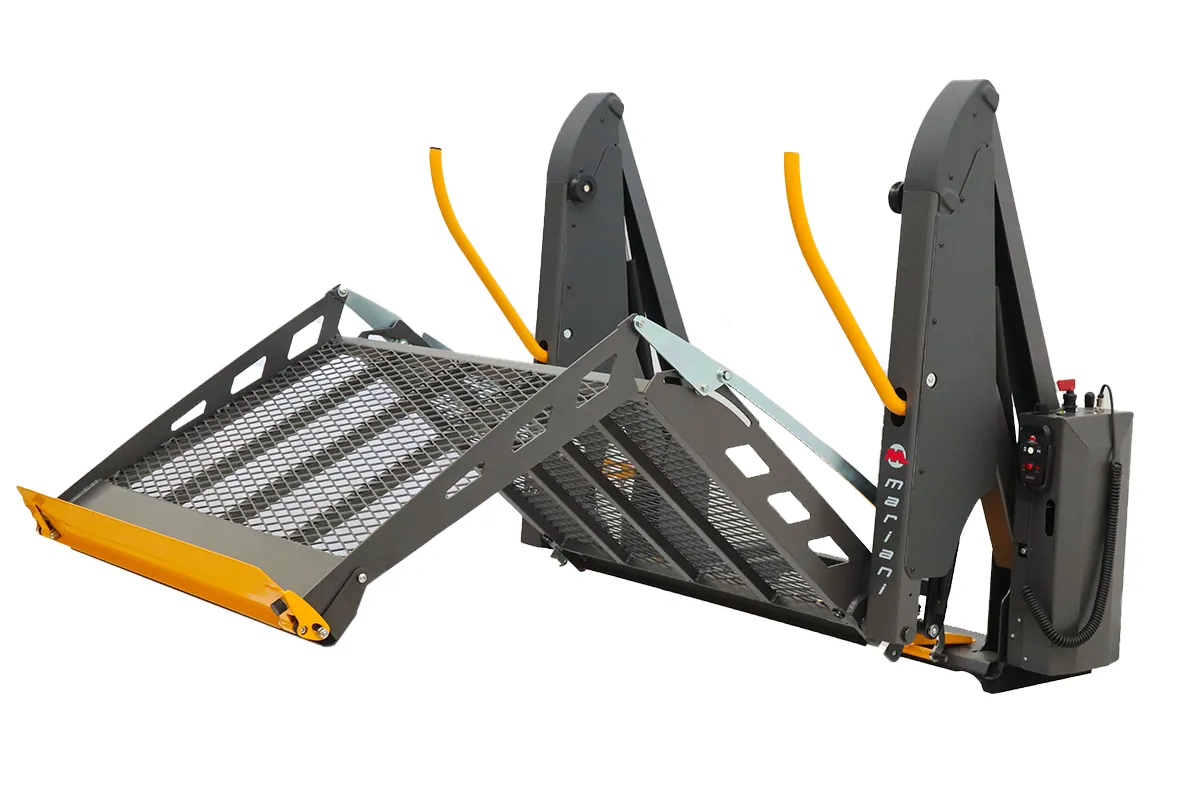

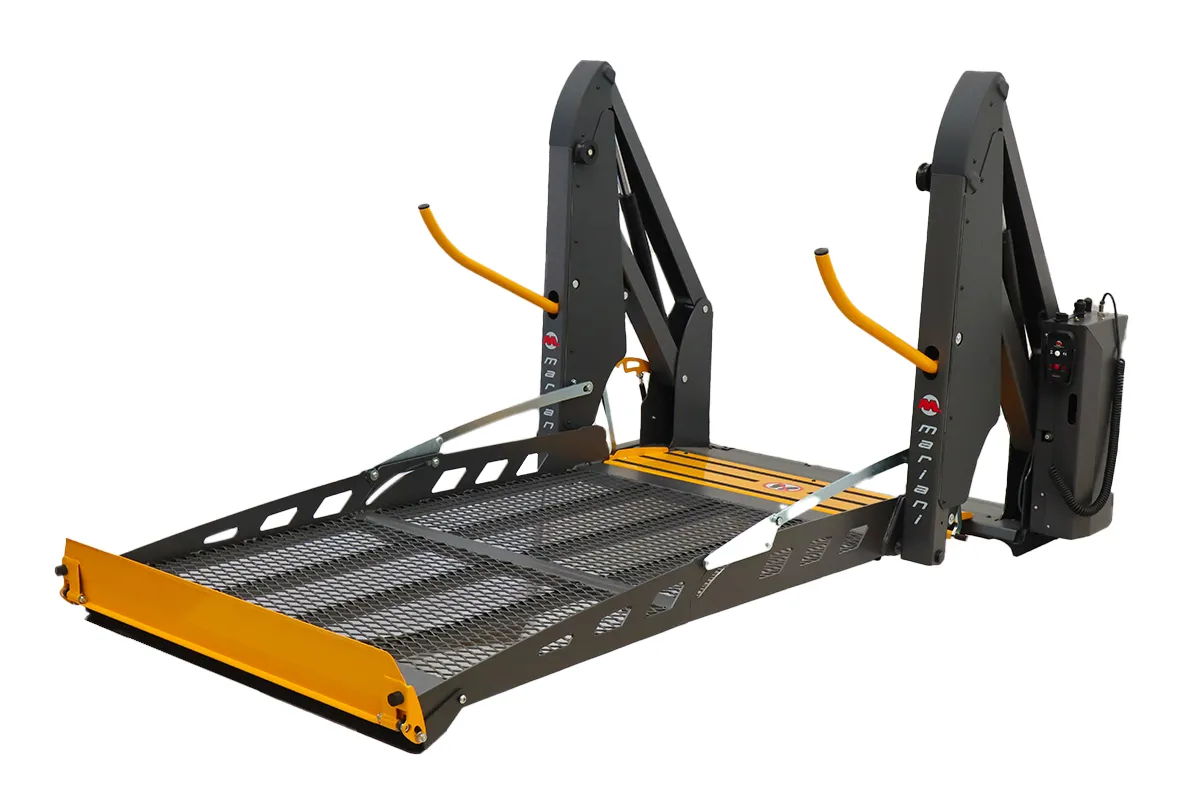

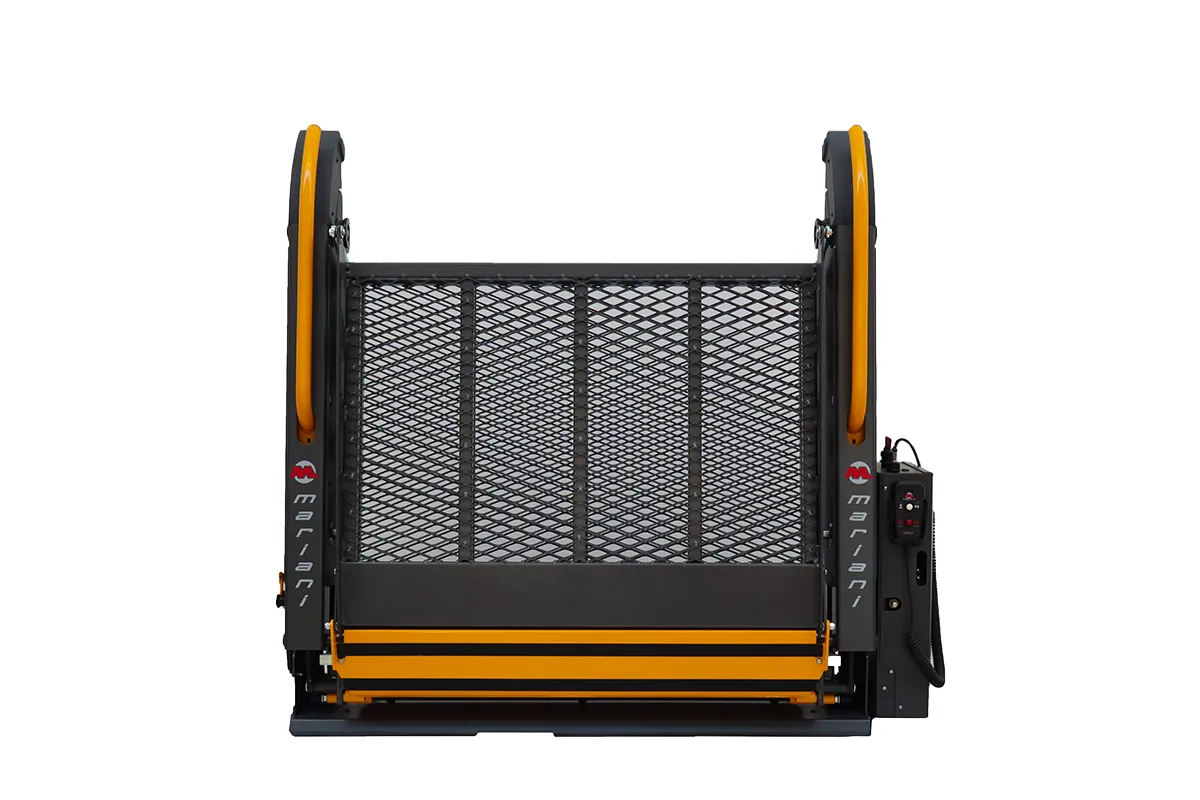

Twin arm lifts with horizontally split platform
The characteristic feature of these twin arm lifts is the possibility of folding the non-slip platform horizontally, leaving less space in the vehicle and a completely unobstructed view for the driver. As with the BBI series lifts, these devices are also fully automatic and can be operated with a practical coiled cable hand control. The technology of the BBO series is patent-protected and is available in seven different sizes.
Warranty
24 months
certified
in accordance with CE regulations
| Article | Max Capacity | Weight | Power supply | Lifting height | Speed up (full load) | Speed down (full load) | Platform | Emergency auxiliary pump |
|---|---|---|---|---|---|---|---|---|
| BBO 115.73 | 320kg | 110kg | 12V | 100cm | 5m/min | 4m/min | 115x73cm | Yes |
| BBO 125.80 | 360kg | 135kg | 12V – 24V | 100cm | 5m/min | 4m/min | 125x80cm | Yes |
| BBO 140.80 | 360kg | 140kg | 12V | 100cm | 5m/min | 4m/min | 140x80cm | Yes |
| BBO 140.90 | 360kg | 150kg | 12V | 100cm | 5m/min | 4m/min | 140x90cm | Yes |
| BBO 146.80 | 360kg | 140kg | 12V | 100cm | 5m/min | 4m/min | 146x80cm | Yes |
| BBO 146.90 | 360kg | 150kg | 12V | 100cm | 5m/min | 4m/min | 146x90cm | Yes |
| BBO Alufiber | 360kg | 95-100kg | 12V – 24V | 100cm | 5m/min | 4m/min | 125/140x80cm | Yes |
Radio control kit for remote operation of the lift
Up/down switch kit on handle
LED flashing kit on vertical columns
Emergency hand pump to be operated in the event of malfunction or power failure
Battery cut-off switch
Automatic safety flap for locking wheelchair
Automatic vehicle connection flap
Anti-tilt device
Double microswitch
On a wide range of vehicles, does not involve changes to the vehicle structure.
