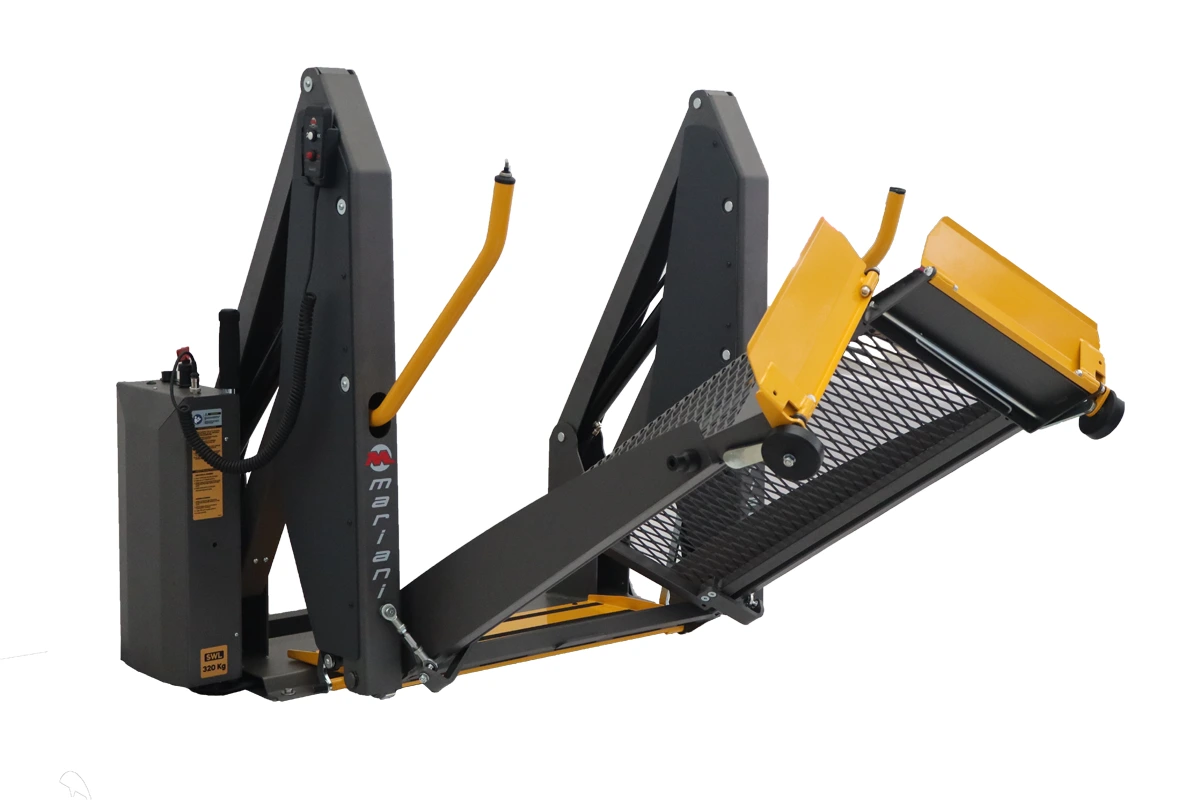

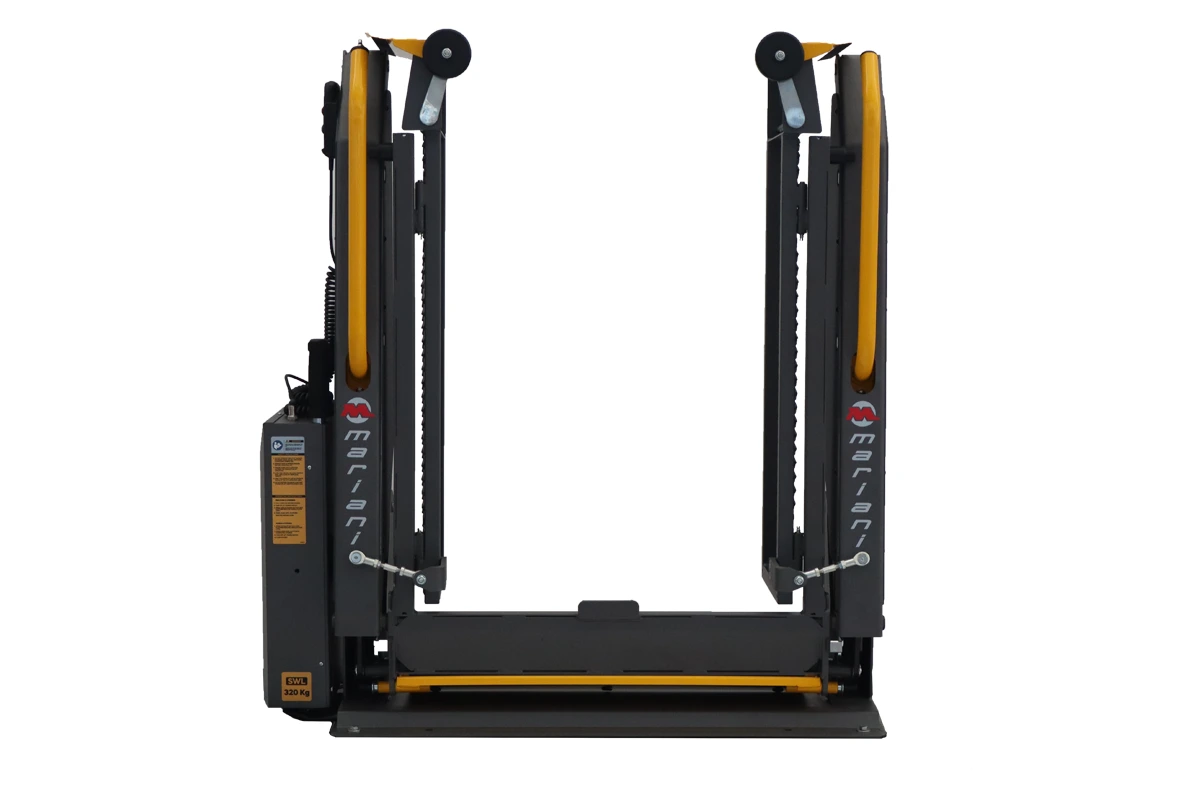

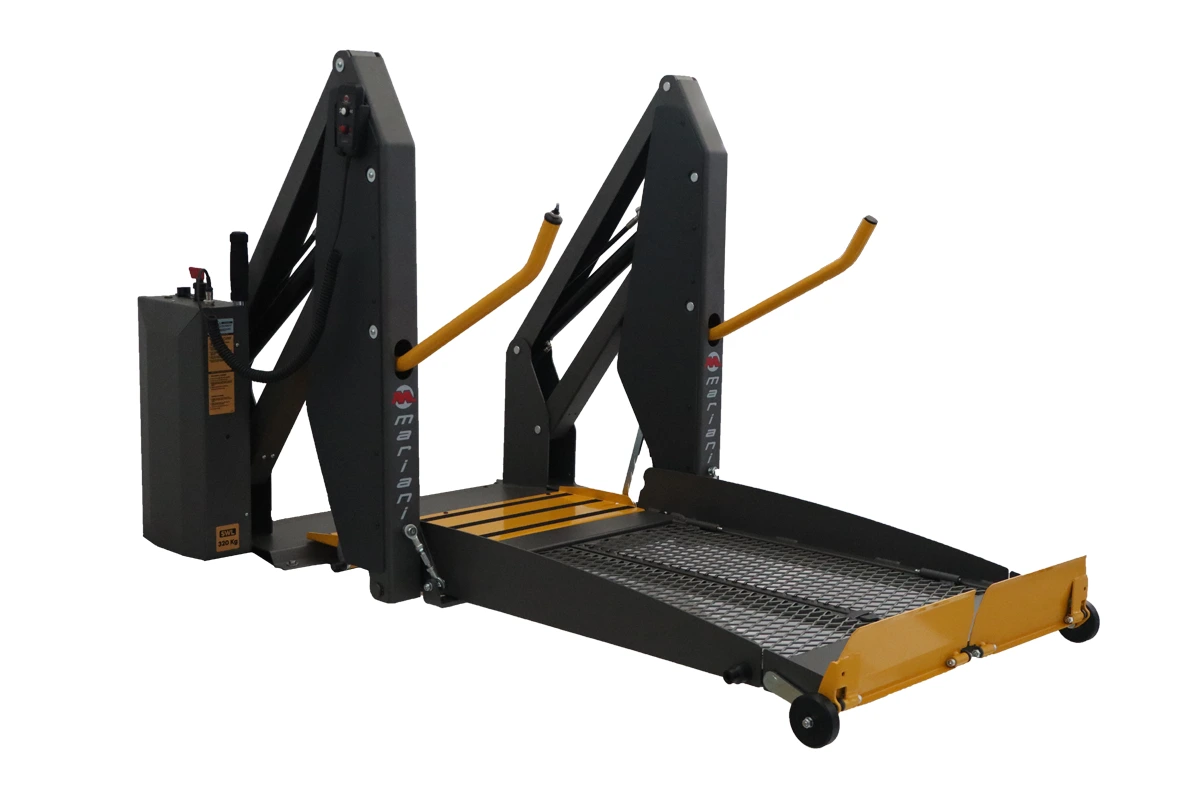

Double arm lifts with vertically foldable platformx
In some cases, such as small vehicles, it is preferable to install a double arm lift that can fold vertically. BBV range by Mariani Lift System responds to this need with a range of practical and solid products. The split double arm lifts, are completely automatic and can be operated by a spiral cable hand control. They are available in three different sizes.
Warranty
24 months
certified
In accordance with CE regulations
| Article | Max Capacity | Weight | Power Supply | Lifting height | Speed up (full load) | Speed down (full load) | Platform | Emergency auxiliary pump |
|---|---|---|---|---|---|---|---|---|
| BBV 103.71 | 320kg | 110kg | 12V | 100cm | 5m/min | 4m/min | 103x71cm | Yes |
| BBV 103.75 | 320kg | 110kg | 12V | 100cm | 5m/min | 4m/min | 103x75cm | Yes |
| BBV 135.80 | 360kg | 140kg | 12V | 100cm | 5m/min | 4m/min | 135x80cm | Yes |
Radio control kit for remote operation of the lift
Up/down switch kit on handle
LED flashing kit on vertical columns
Emergency manual pump to be operated in case of malfunction or power failure
Battery master switch
Automatic safety flap to stop the wheelchair
Automatic bridge plate for vehicle connection
Anti-tilt device
Double microswitch
On a wide range of vehicles; it does not involve vehicle frame changes.
