ESI

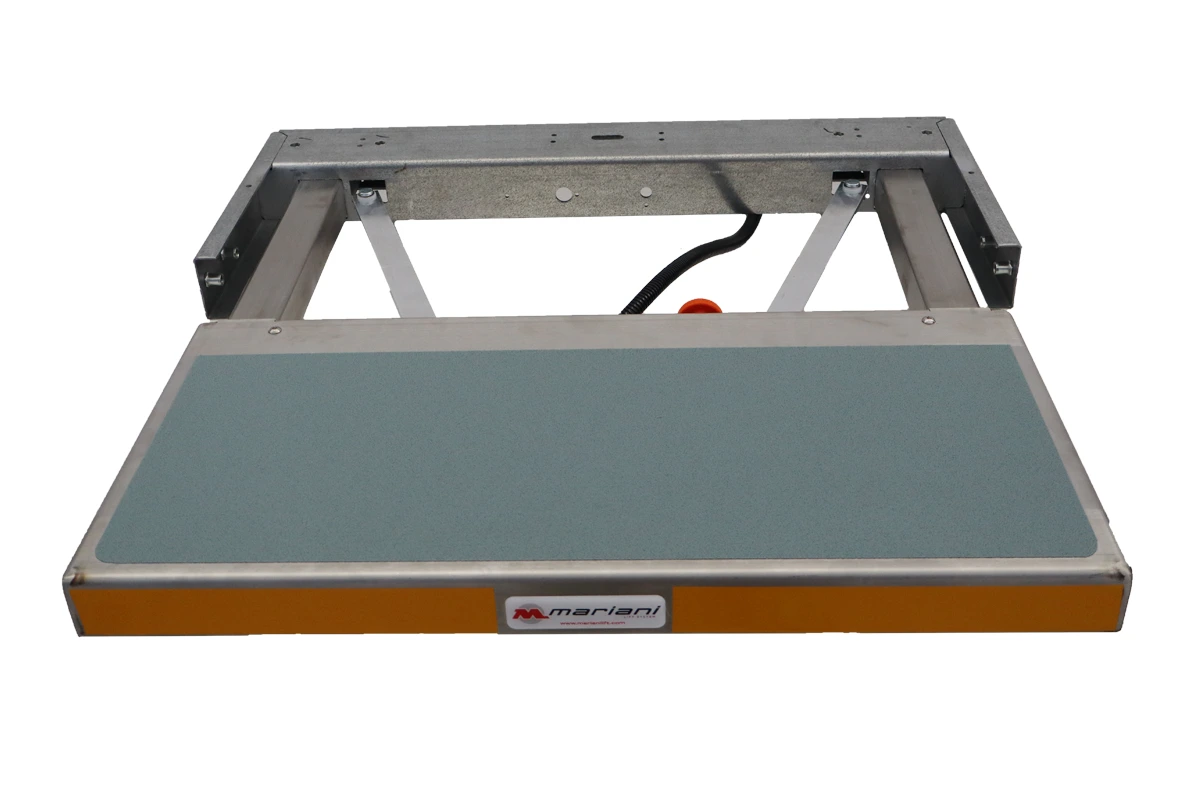

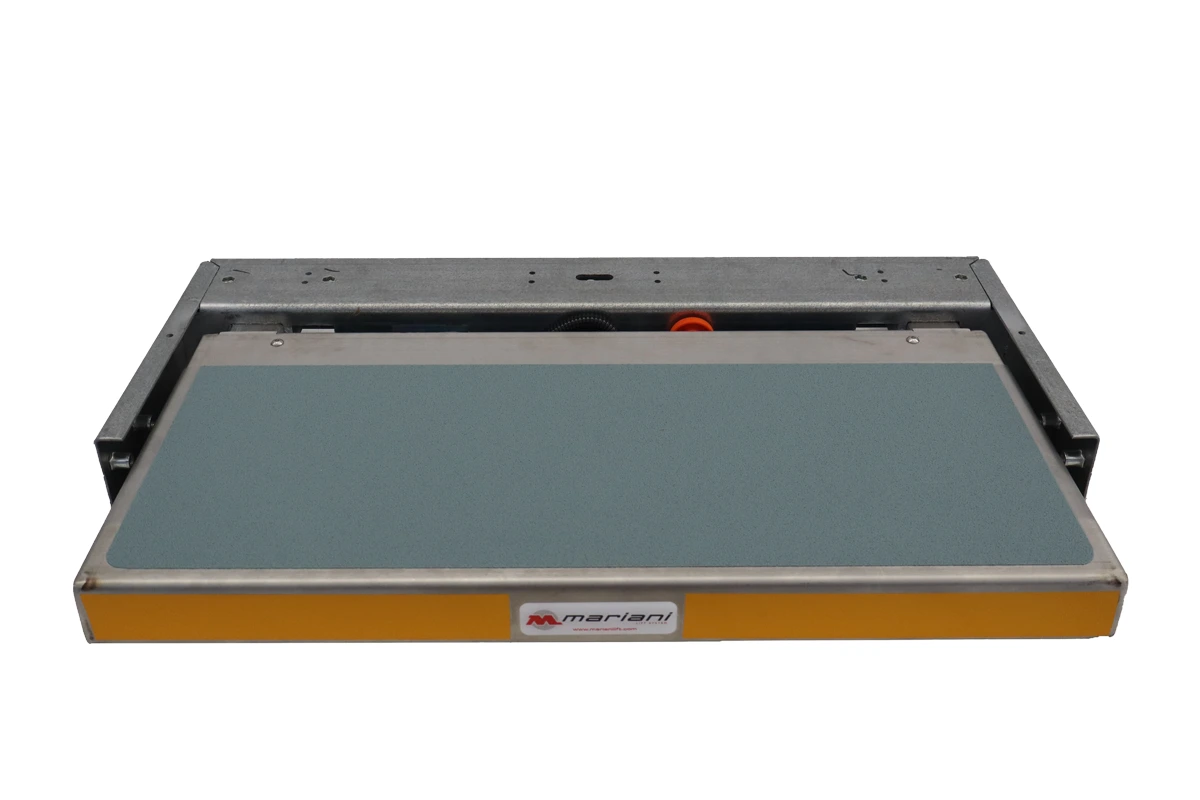

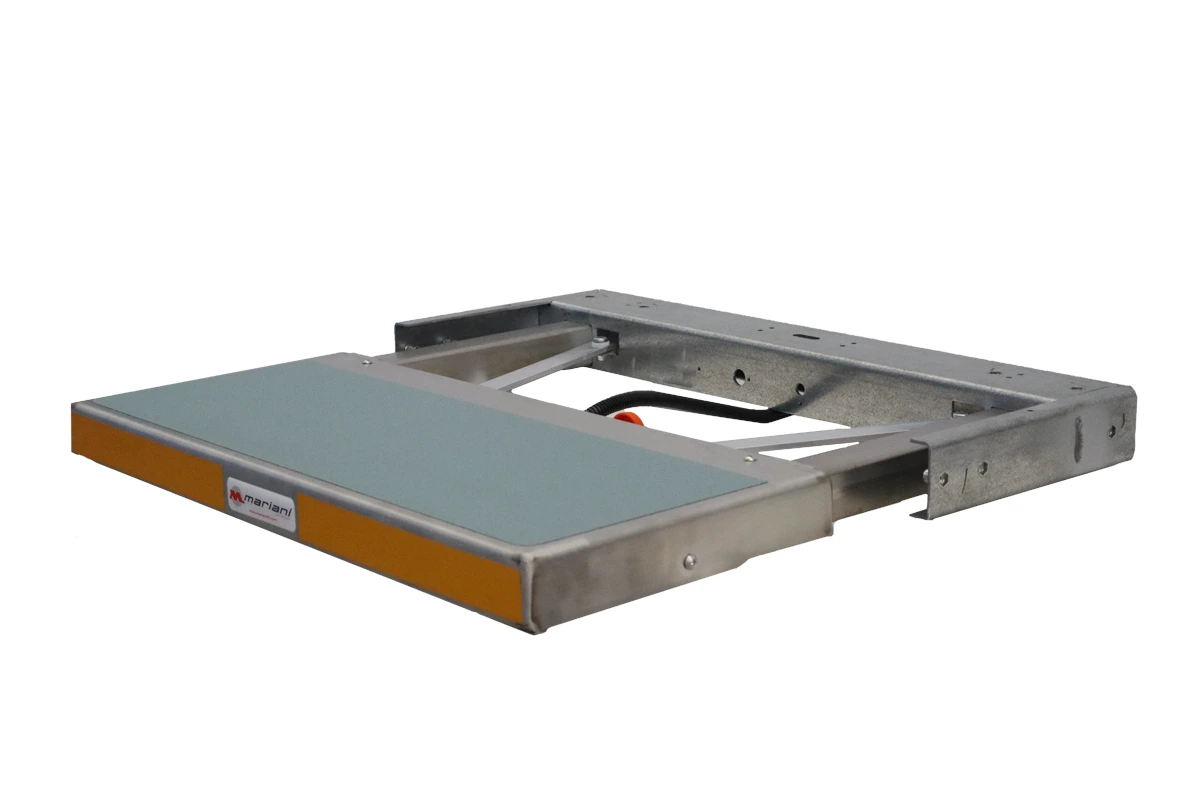

Electrical Steps
Mariani Lift electric steps with CE-certified European approval have a 24-month warranty and comply with electromagnetic compatibility regulations. The electric steps are available in three different sizes, allowing them to be installed on a wide range of vehicles.
Technical characteristics:
- Control via electronic box.
- Anti-crushing function: the step stops automatically in the event of an obstacle.
- Door opening switch.
- Indicator light for the dashboard.
- Buzzer (if TPMR / OPTIONAL option).
Warranty
24 months
certified
in accordance with CE regulations
| Article | Max capacity | Weight | Power supply | Opening speed | Closing speed | Step dimensions | Overall dimensions |
|---|---|---|---|---|---|---|---|
| ESI 600 | 200kg | 20kg | 12V | 3sec | 3sec | 60 x 28 x 6 H cm | 65 x 38 x 6 H cm |
| ESI 900 | 250kg | 25kg | 12V | 3sec | 3sec | 90 x 28 x 6 H cm | 95 x 38 x 6 H cm |
| ESI 1100 | 300kg | 29kg | 12V | 3sec | 3sec | 110 x 28 x 6 H cm | 115 x 38 x 6 H cm |
